Medium Voltage Power Cable NA2XSY 1C Aluminium Cable
Category:Medium High Voltage Power Cable
NA2XSY Cable is single core aluminium cable XLPE insulation PVC sheath. ...
Dosense cable is among leading cable manufacturer for Medium Voltage Power Cable from above 1KV to 500KV, with manufacturing standards as per IEC60502-2, BS6622&BS7835, NFC, ASTM, VDE 0276-620 etc.
Medium Voltage Power Cable NA2XSY 1C Aluminium Cable is defined as single core, aluminium conductor, XLPE insulation and PVC outer sheath power cable, with frequent MV cable rated 10KV, 20KV 30KV etc.
Medium Voltage Power Cable NA2XSY 1C Aluminium Cable is usually applied to industry in oil & gas , transportation, water treat plant, food processing, power station, transformer stations etc.The NA2XSY is laid in ground, indoors or outdoors, in ducts, etc.

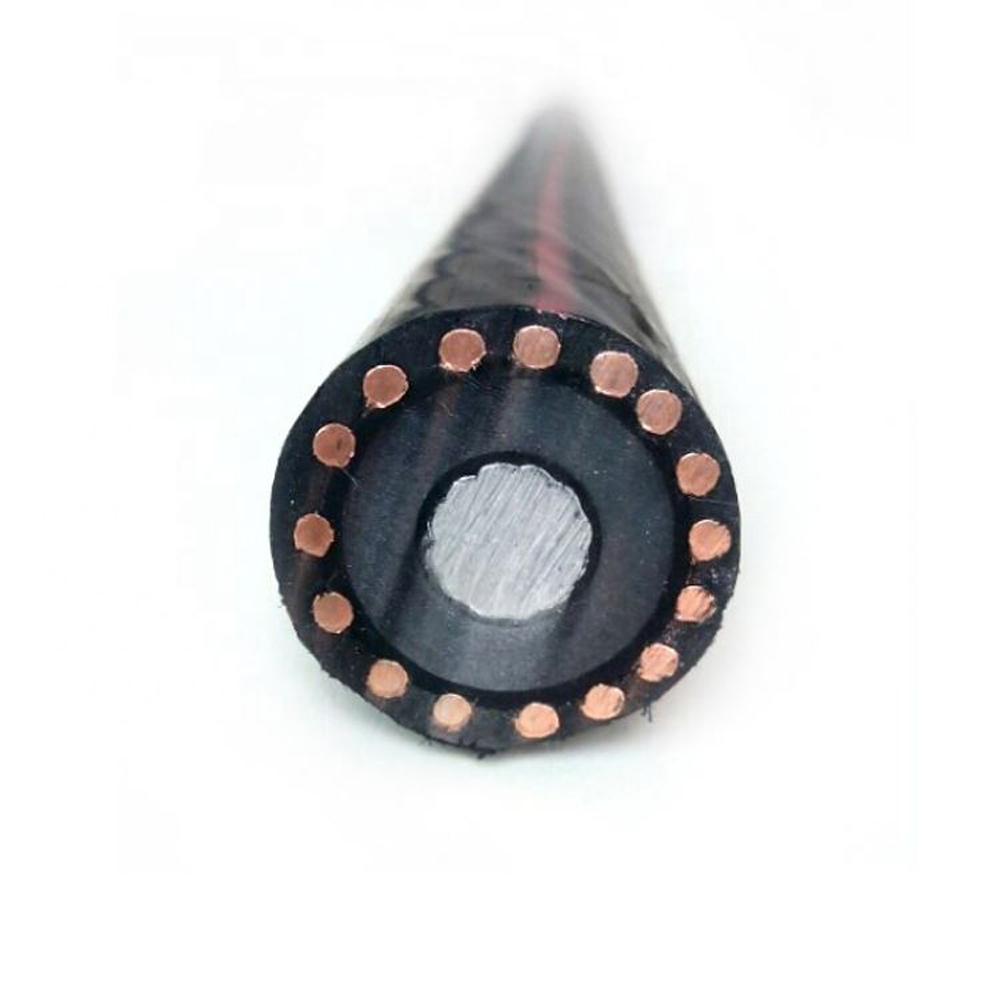

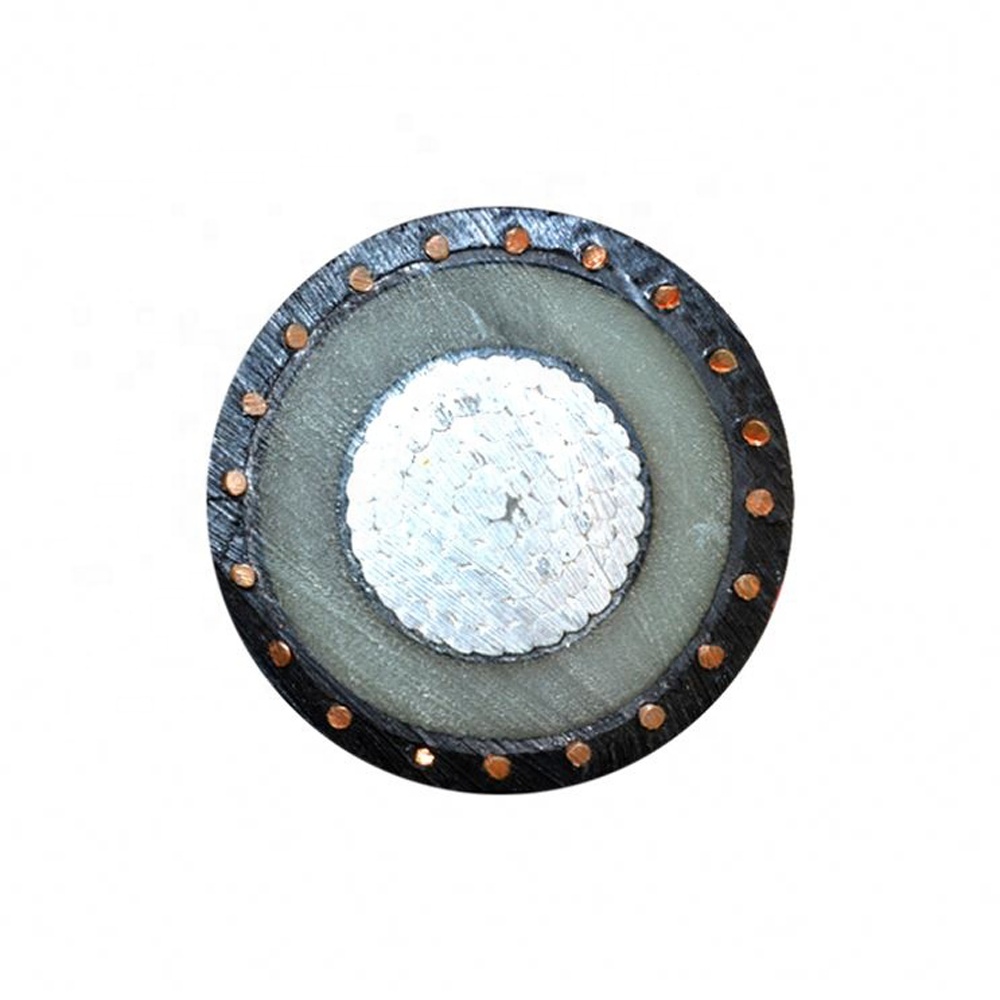

Medium Voltage Power Cable NA2XSY 1C Aluminium Cable- Construction
|NA2XSY MV Cable Single Core 6/10(12kV); 8.7/15kV, 12/20(24kV), 18/30(36)kV|
|Conductor||Aluminium wire stranded, class 2, compacted conductor|
|Conductor Screen||Semi-conductive compound|
|Insulation||XLPE Insulation (Cross-Linked Polyethylene)|
|Insulation Screen||Semi-conductive compound|
|Metallic Screen||Copper wires|
|Outer Jacket||PVC Jacket (Polyvinyl Chloride)|
|Conductor Size||50mm2 to 500mm2|
|Temperature Rating||-20℃ to 70℃|
Medium Voltage Power Cable NA2XSY 1C Aluminium Cable-Standard
NA2XSY Cable is produced as per DIN VDE 0276-620, HD 620, EN 60228 NA2XSY Flame Retardant is according to IEC/EN 60332-1-2
As a professional manufacturer for Medium Voltage Power Cable NA2XSY 1C Aluminium Cable, we are able to produce OEM, ODM MV cables to meet different industrial requirements. With strict production and testing procedures, we are providing the MV cables to oil and gas industry, mining industry, substation, power station, power generating project etc.
For more technical and commercial support, welcome to contact our sale & technical team.
